Digital Scale

Description

The digital scale is highly accurate, with a robust construction and high strength hook. A compact and easy to operate item, it can be handled by a single person.

The digital scale operates without electricity, has a rechargeable battery with a high charge capacity and comes with a bivolt adapter (110v / 220v) to charge.

The digital scales are IP65 certified, with protection against dust and liquid jets, and can be operated in temperatures from -10 ° C to + 40 ° C. Its LED display is 1.2 inches and has a 5-digit display, with an available 0.2kg split scale.

The digital dynamometer has two options of measurement units, kg (kilograms) and lb (pounds), easily configured through the remote control.

Measurements made by dynamometers are for suspended loads and can be used for finished products or materials in process, in numerous industrial and agricultural applications.

It is important to remember that digital scale cannot be considered scales, as they are not certified, therefore, its use is not recommended for commercial transactions. Its calibration is carried out at the factory.

Use

Process Control in Industries
Construction
Overhead Cranes
Mechanical Industry
Cranes
Agro Industry and Agriculture
Hoist

Table

Swipe right to see more information.





Model Battery Capacity
(Kgf)

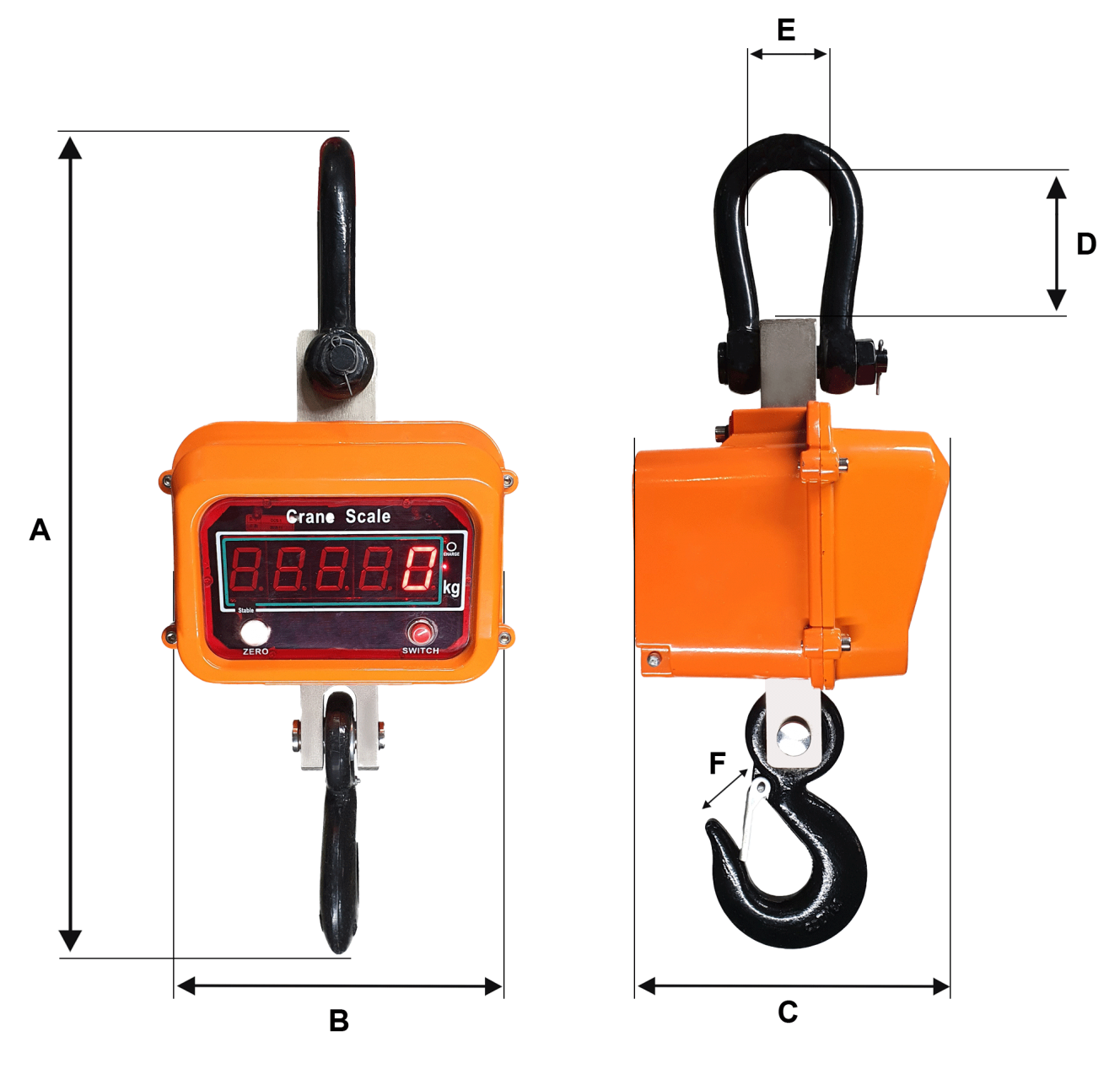

Dimensions (mm)
A B C D E F
OSC - S5 500 340 145 82 110 24 18
OSC - S10 1000 380 145 80 120 250 22
OSC - N1 1000 580 250 210 180 430 27
OSC - N2 2000 580 250 210 180 430 30
OSC - N3 3000 580 250 210 180 430 30
OSC - N5 5000 690 250 215 220 470 43
OSC - N10 10000 760 250 215 230 600 50
OSC- N15 15000 830 250 210 255 680 60
OSC - N20 20000 980 248 330 310 800 80



Model OSC - S5 OSC - S10 OSC - N1 OSC - N2 OSC - N3 OSC - N5 OCS - N10 OSC - N15 OSC -Z20
Battery Capacity 500 1000 1000 2000 3000 5000 10000 15000 20000
Display LED Display - 1.2 Inch - 5 Digits
Operating Temperature - 10ºC / + 40ºC
Adapter Bivolt 110v-220v
Rechargable Battery Internal Rechargeable Battery 6V/5Ah
Division Scale 0,2 Kg 0,5 Kg 0,5 Kg 1 Kg 1 Kg 2 Kg 5 Kg 5kg 5 Kg
Weight 2,1 Kg 3,0 Kg 11,2 Kg 11,2 Kg 12,1 Kg 17,0 Kg 25,0 Kg 35,5 Kg 61,0 Kg
